Shen zhen Yi Jin Sheng technology Co.,Ltd Qualtiy is our Credit,With YJS together to build a brighter future
10 Years
| Ask Lasest Price | |
| Brand Name : | YJS |
| Model Number : | YJSA1000 |
| Certification : | CE |
| Price : | USD 80 |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Delivery Time : | 7day after receipted paid |

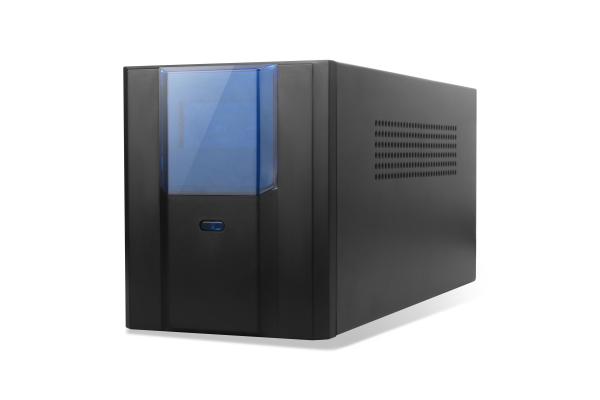

Hot selling 1000Va 230V online UPS for MRI hospital medical products IEC
| Model | YJS-A500 | YJS-A650 | YJS-A1000 | YJS-A1500 | YJS-A3000 |
| Rated Power | 500VA/300W | 650VA/390W | 1000VA/600W | 1500VA/900W | 3000VA/1800W |
| Input | |||||
| Voltage | 230VAC | ||||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) | ||||
| Frequency Range | 50Hz/60Hz ( Option) | ||||
| Output | |||||
| Output voltage | 230VAC+/- 5% | ||||
| Voltage Regulation battery mode | +-10% | ||||
| Frequency battery | 50Hz / 60 Hz Option | ||||
| Transfer Time | Typical 6-10ms | ||||
| Waveform | Simulate Sinewave | ||||
| Socket | IEC/ Shucko Socket & EU Plug | ||||
| Battery | |||||
| Battery Type &Number | 12V*4Ah*1 | 12V*7Ah*1 | 12V*7Ah*2 | 12V*9Ah*2 | 12V*7Ah*4 |
| Typical Charging time | 8 hours recover to 90% | ||||
| Protection | |||||
| Full protection | short circuit ,Over load ,battery low voltage protection and off-mode charging | ||||
| RS232 or USB communication port | Option | ||||
| RJ11/RJ45 Port | Option | ||||
| Indicators | |||||
| Line Mode | Green ligth | ||||
| Battery model | Red light | ||||
| Battery charger model | Yellow light | ||||
| Alarm | |||||
| Battery model | sounding every 4 seconds | ||||
| Low capacity | sounding every seconds | ||||
| Over load | sounding every 0.5 seconds | ||||
| Battery charge Model | continuously sounding | ||||
| Physical | |||||
| Dimension: D*W*H(mm) | 265*90*137 | 307*90*137 | 365*138*165 | 365*138*165 | 360*190*325 |
| Net Weight (kgs) | 4 | 5 | 9.7 | 12 | 24 |
| Gross weight | 6.1 | 7.3 | 11.8 | 14.5 | 27 |
| Operating Environment: | |||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||||
| Operating Temperature | 0-55 | ||||
| Storage Temperature | 15-60 | ||||
|
|
